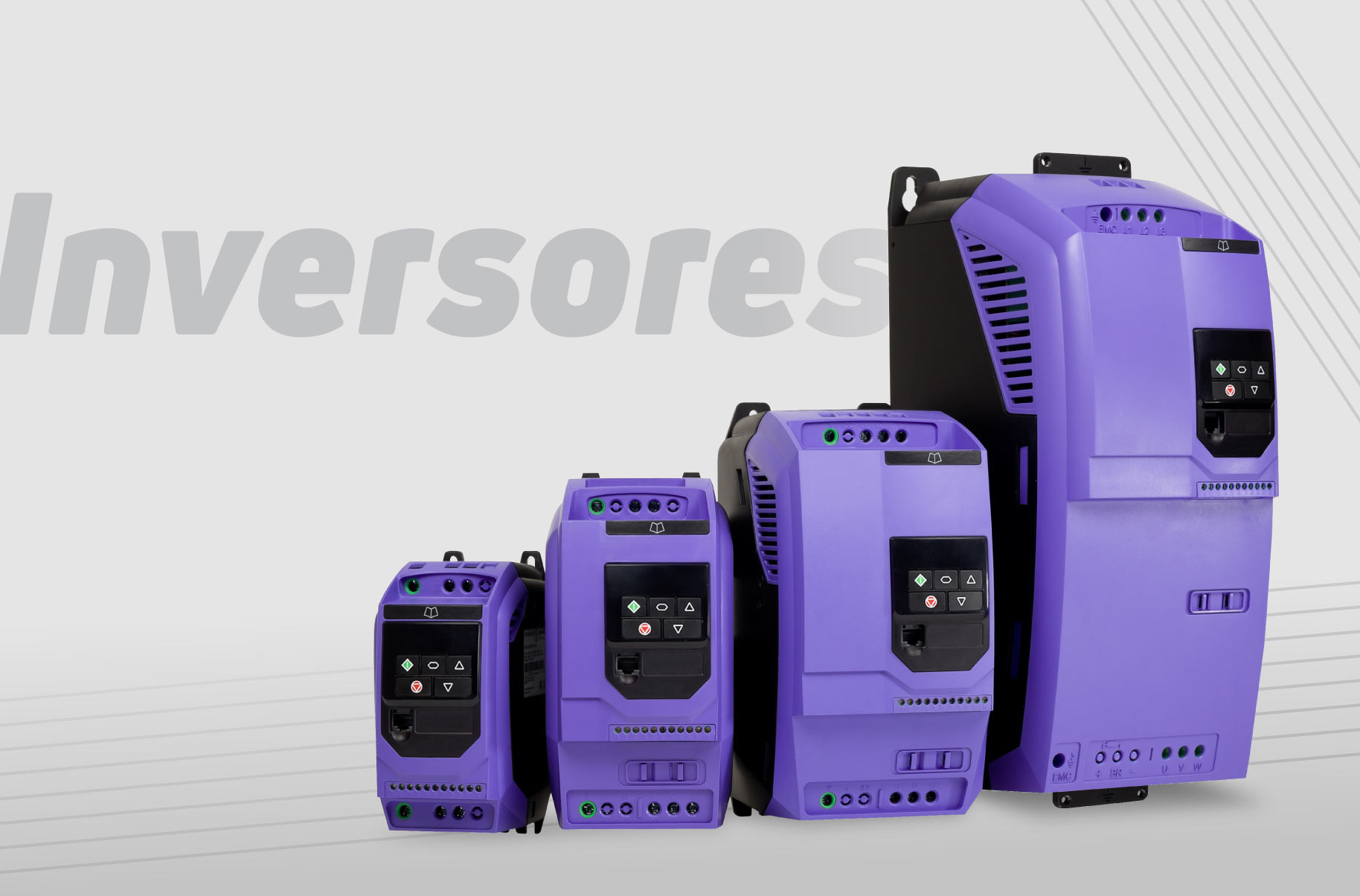

Frequency Inverter

Reliability and durability in asynchronous drives across various power ranges

With high performance and low energy consumption, Altus's frequency inverters offer a cost-effective solution for controlling machines and electric motors.

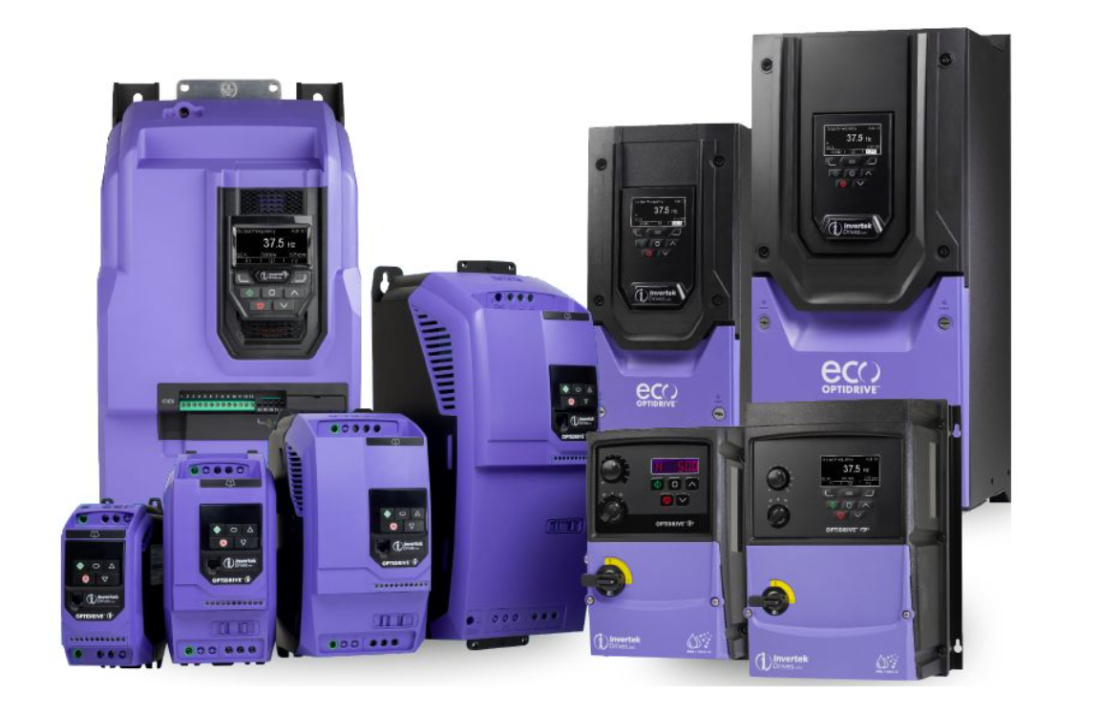

Available in a wide range of options, the multi-purpose drives from the Optidrive E3, Optidrive ECO, and Optidrive P2 families are ideal for controlling low-power three-phase asynchronous motors, ensuring efficiency, precision, and reliability.

Learn about our solutions and discover which drive is most suitable for your application.

Versatility to meet market demands

With a wide range of power, the Optidrive Series frequency inverters are ideal for controlling packaging, bagging, labeling and rewinding machines, small applications such as building, sanitation and small industrial processes, and large and complex systems such as those found in the electrical, metallurgical, mining and agro-industrial segments.

Additionally, the inverters also excellently serve large and complex systems, such as those present in the electrical, metallurgical, mining, and agro-industrial segments, offering precision, performance, and reliability at any application scale.

With a wide range of power ratings, the Optidrive Series frequency inverters are versatile and efficient solutions, ideal for controlling packaging, bagging, labeling, and rewinding machines, as well as for small applications in building processes, sanitation, and small industries.

Download our product portfolio.Download the series programming software.
Versatilidade

Versatility

Various models for small to large machines and applications

Segurança

Safety

Robust products with IP20, IP55 and IP66 safety levels

Diversidade

Diversity

Wide variety of power ratings ranging from 0.75kW up to 250kW.

Eficiência energética

Energy efficiency

Reduced losses and lower operating costs

Controle simples e de fácil configuração

Simple and easy-to-configure control

With a focus on ease of use, the Optidrive E3 Series frequency inverters offer simple installation and connection, especially for small applications, providing the user with precise motor control and significant energy savings. With just 14 basic parameters and macro function applications, which provide quick configuration, Optidrive E3 products minimize system startup time.

As they are Sensorless Vector type, the drives in this family provide high starting torque and excellent speed regulation, ideal features for automating machines, such as packaging machines, bagging machines, labeling machines, rewinders, among others.

Voltage: Single-phase 220V and three-phase 220 and 380V. Power: up to 22kW. Communication: MODBUS and CANopen (RJ45). Filter: EMC. Protection level: IP20 and IP66.

Inversor de frequência compacto, robusto e confiável

Compact, robust and reliable frequency inverter

The Optidrive E3 Series features frequency inverters with IP66/Nema 4X protection rating, robust products built with resistant polycarbonate plastics, specifically chosen to withstand degradation by ultraviolet (UV), greases, oils and acids. With a sealed ABS enclosure and a corrosion-resistant heat sink, the E3 IP66 model is ideal for high-pressure washdown applications, such as in cold storage and processes in the chemical, food and pharmaceutical industries. Economical and easy to use, Optidrive E3 inverters for single-phase motors have intelligent and reliable starting for low-power applications.

Voltage: Single-phase 220V and three-phase 220 and 380V. Power: up to 22kW. Communication: MODBUS and CANopen (RJ45). Filter: EMC. Protection level: IP20 and IP66.

Eficiência energética para controle de bombas e ventiladores

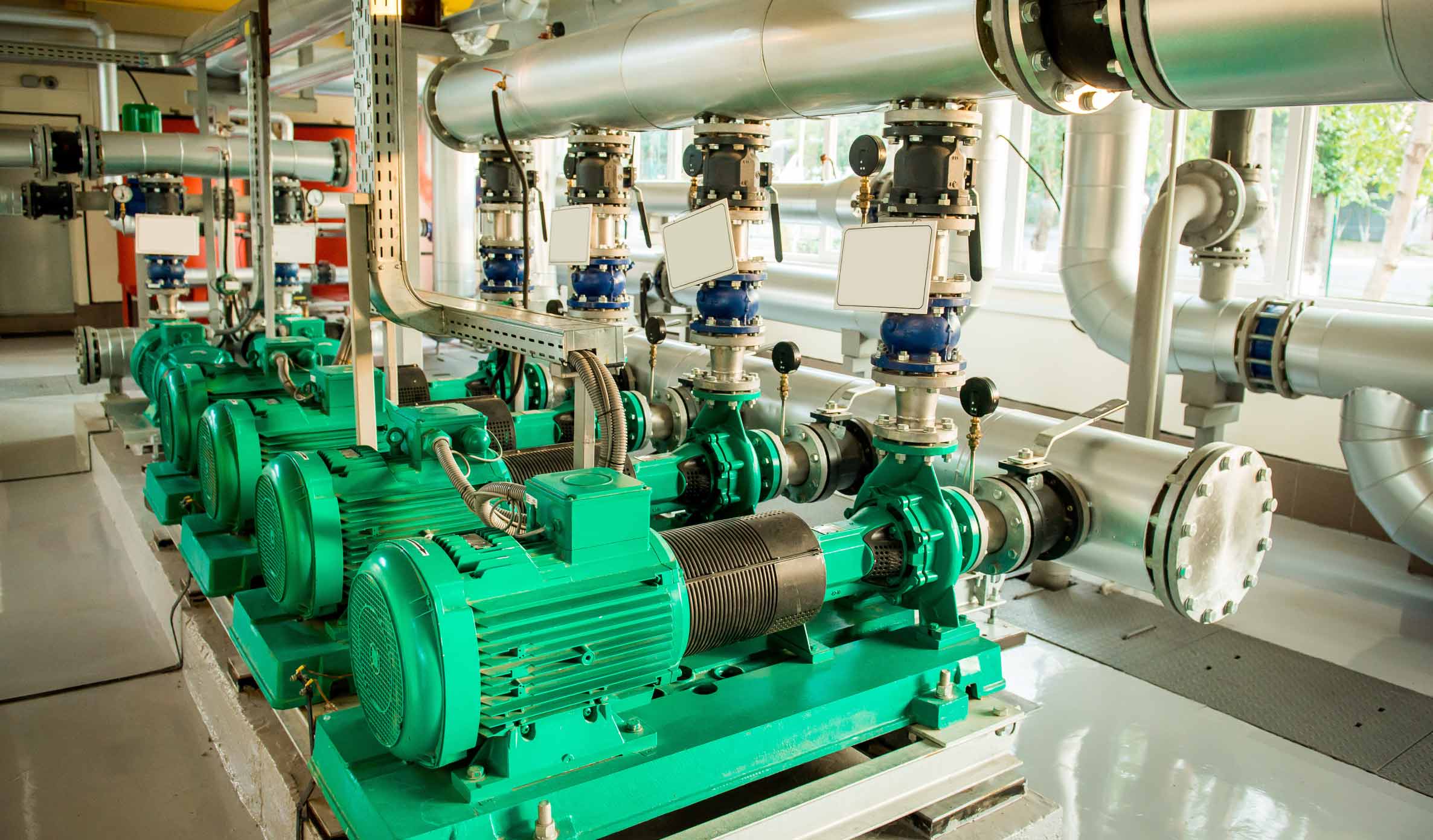

Energy efficiency for fan and pump control

The Optidrive Eco Series offers highly qualified solutions to optimize the performance of fans and pumps used in HVAC applications, allowing the instruments to operate at maximum efficiency in all conditions, ensuring energy efficiency and saving time, cost and energy. The series also uses an advanced system for designed motor control, further increasing the energy efficiency of the inverters.

Features such as precise speed control, energy optimization and sleep and wake functions ensure significant energy savings for air conditioning applications. In addition, all products in the Optidrive Eco family support the BACnet and MODBUS communication protocols, ideal features for facilitating installation in building systems.

Voltage: Three-phase 220 and 380V. Power: 0.75kW to 250kW. Communication: Modbus and BACnet. Filter: EMC.

Controle avançado para motores de alta performance

Advanced control for high-performance motors

The Optidrive P2 Series variable speed drives offer the perfect combination of high performance and ease of use to enable even the toughest challenges to be met with ease. The extensive I/O and communication interfaces ensure that the drives in the family can be quickly and efficiently integrated into any control system with short commissioning times and rapid start-up. In addition, Optidrive P2 drives have been designed to allow the use of a wide range of motors with just a few parameter changes, technology that allows the same drive to be used in different applications.

As standard, all Optidrive P2 drives provide 150% overload for up to 60 seconds, ensuring that each drive is suitable for heavy-duty applications, while the IP55 sealed versions ensure that the drive is rugged enough to operate in even the harshest environments.

Voltage: Three-phase 220 and 380V. Power: 0.75kW to 250kW. Communication: Modbus and CANopen. Filter: EMC.
